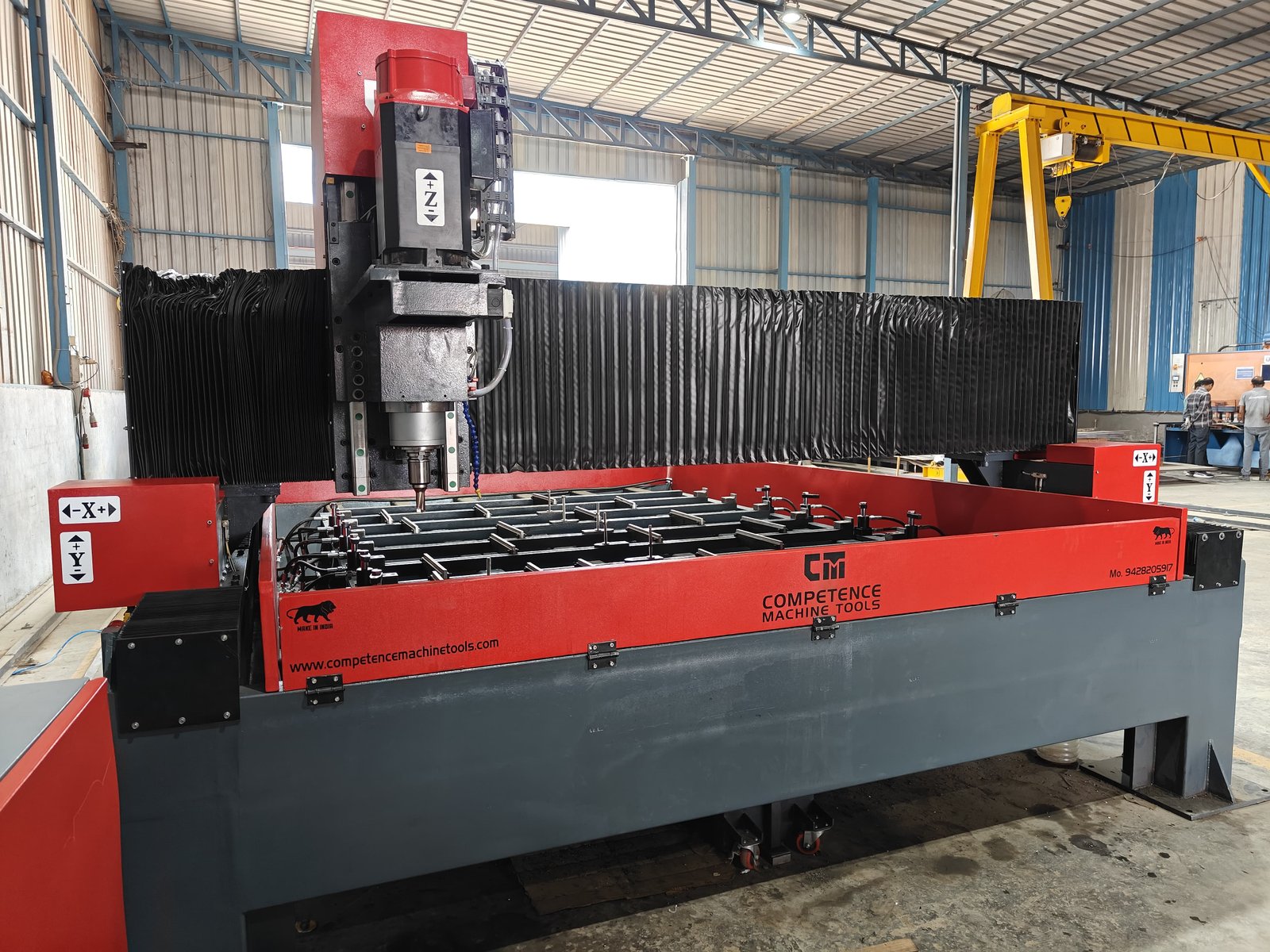

CNC Tube Sheet Drilling Machine
ompetence Techno Engineers Pvt Ltd presents a state-of-the-art Tube Sheet Drilling Machine designed for precision, durability, and high-performance output. Ideal for heavy-duty tube sheet and metal plate drilling applications, this advanced machine meets the demands of industries like boiler manufacturing, heat exchangers, power plants, petrochemicals, and shipbuilding.
Manufacturer: Competence Techno Engineers Pvt. Ltd.
Technical Specifications
Working Area
X = 1500 / 2000 / 3000 mm
Y = 1500 / 2000 / 3000 mm
Z = 200 mm
Y = 1500 / 2000 / 3000 mm
Z = 200 mm
Transmission
X = Helical Rack / Ball Screw
Y = Helical Rack / Ball Screw
Z = Ball Screw
Y = Helical Rack / Ball Screw
Z = Ball Screw
Axis Motor
Servo
Drive System
Planetary Gear Box
Linear Guide Rail
45 / 55 mm LM Guide
Spindle Type
BT 40 / 50 CTS
Spindle RPM
6000 RPM
Spindle Motor
7.5 / 9 / 11 kW Servo Motor
Machine Accuracy
50 to 80 Micron
CNC Controllers
ADTECH / MITSUBISHI / Equivalent
Working Command
G-Code
Lubrication
Auto-Operated Pump
Key Features
- High drilling accuracy and repeatability
- Efficient chip removal with standard chip conveyor
- G-code compatible for seamless CNC programming
- Robust fabricated structure for long operational life
- Bellow covers on all axes for protection from debris
Applications

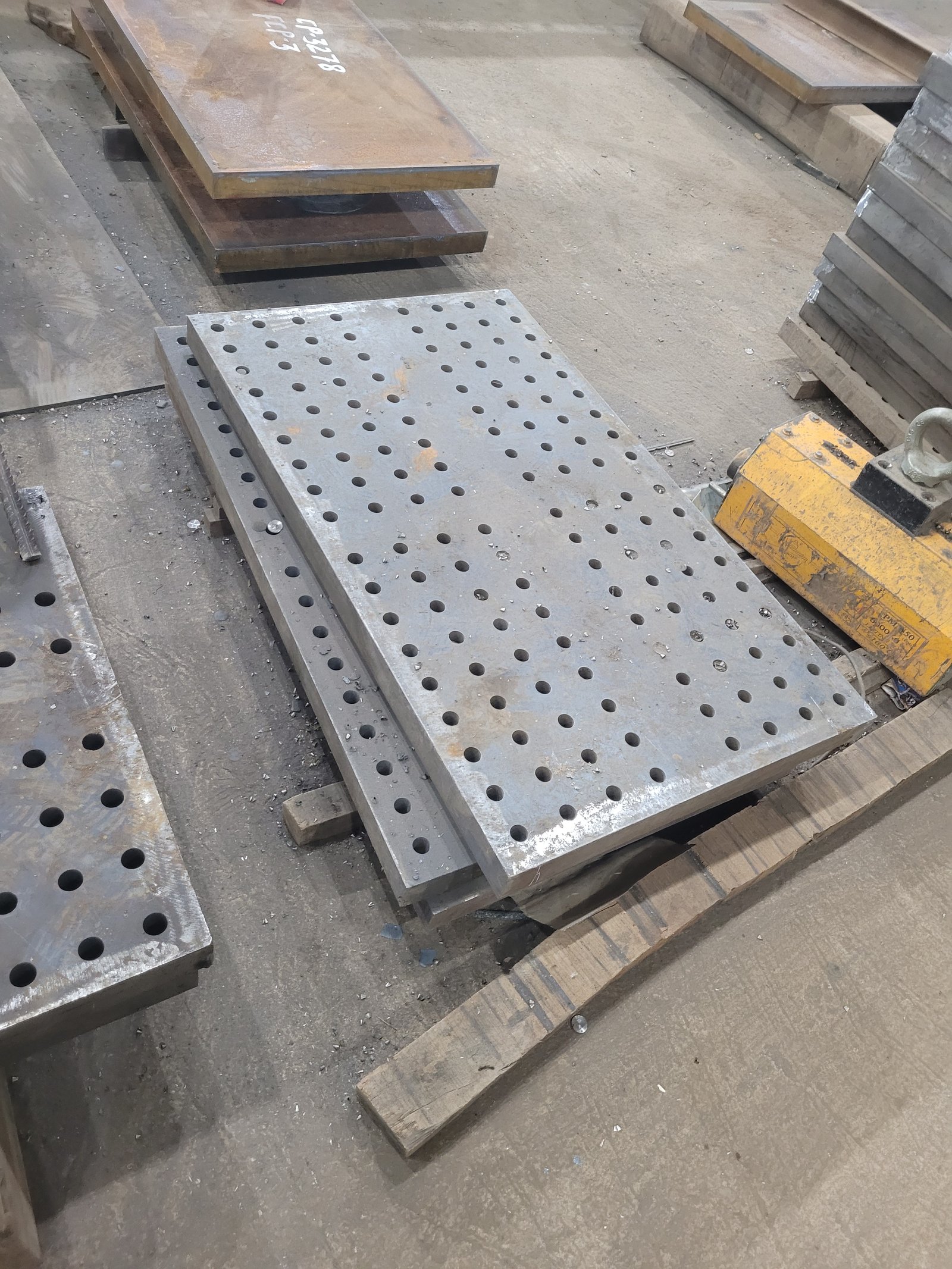

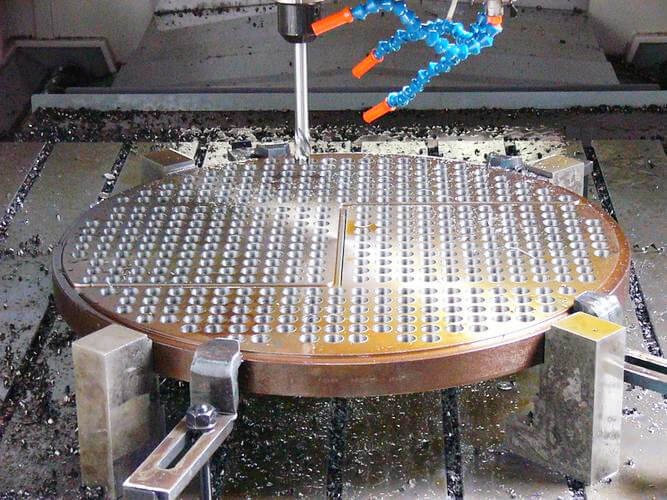

This sheet metal drilling machine is ideal for tube sheets, baffle plates, flanges, and similar components where high precision and speed are critical. We are leading CNC Tube Sheet Drilling Machine Manufacturer in India, Competence Techno Engineers Pvt Ltd delivers cutting-edge CNC solutions with unmatched service support and technical excellence.
